1. Make-up and Structural Features of Fused Quartz
1.1 Amorphous Network and Thermal Security

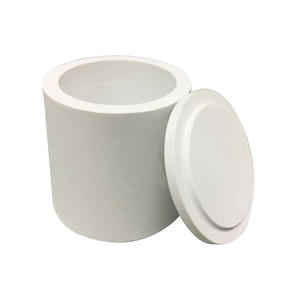

(Quartz Crucibles)
Quartz crucibles are high-temperature containers made from fused silica, a synthetic kind of silicon dioxide (SiO TWO) originated from the melting of natural quartz crystals at temperature levels exceeding 1700 ° C.
Unlike crystalline quartz, merged silica has an amorphous three-dimensional network of corner-sharing SiO four tetrahedra, which conveys remarkable thermal shock resistance and dimensional stability under fast temperature level modifications.
This disordered atomic structure protects against bosom along crystallographic aircrafts, making merged silica less vulnerable to cracking during thermal biking contrasted to polycrystalline ceramics.
The product exhibits a reduced coefficient of thermal development (~ 0.5 × 10 ⁻⁶/ K), among the most affordable amongst design products, allowing it to withstand extreme thermal gradients without fracturing– an important property in semiconductor and solar cell production.
Merged silica likewise maintains superb chemical inertness against many acids, liquified metals, and slags, although it can be gradually engraved by hydrofluoric acid and warm phosphoric acid.
Its high softening factor (~ 1600– 1730 ° C, depending on pureness and OH web content) allows sustained operation at elevated temperatures needed for crystal growth and steel refining procedures.
1.2 Purity Grading and Micronutrient Control
The performance of quartz crucibles is extremely based on chemical pureness, especially the focus of metallic contaminations such as iron, sodium, potassium, light weight aluminum, and titanium.
Even trace quantities (components per million degree) of these contaminants can move right into liquified silicon during crystal growth, weakening the electrical homes of the resulting semiconductor material.
High-purity qualities utilized in electronics manufacturing normally have over 99.95% SiO ₂, with alkali metal oxides limited to much less than 10 ppm and shift steels below 1 ppm.
Impurities originate from raw quartz feedstock or processing equipment and are reduced via careful option of mineral sources and purification methods like acid leaching and flotation protection.
Furthermore, the hydroxyl (OH) web content in integrated silica affects its thermomechanical behavior; high-OH types supply far better UV transmission yet lower thermal security, while low-OH variations are preferred for high-temperature applications as a result of reduced bubble formation.

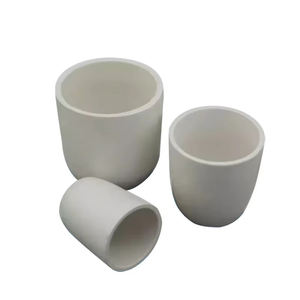

( Quartz Crucibles)
2. Manufacturing Process and Microstructural Style
2.1 Electrofusion and Creating Strategies
Quartz crucibles are largely generated using electrofusion, a process in which high-purity quartz powder is fed right into a turning graphite mold within an electrical arc heater.
An electrical arc generated in between carbon electrodes melts the quartz fragments, which strengthen layer by layer to develop a seamless, thick crucible shape.
This method creates a fine-grained, homogeneous microstructure with very little bubbles and striae, essential for consistent warmth circulation and mechanical integrity.
Alternative techniques such as plasma fusion and fire blend are utilized for specialized applications needing ultra-low contamination or details wall surface thickness profiles.
After casting, the crucibles undergo controlled air conditioning (annealing) to alleviate internal stress and anxieties and protect against spontaneous cracking during solution.
Surface area ending up, including grinding and polishing, makes certain dimensional precision and decreases nucleation sites for unwanted condensation during usage.
2.2 Crystalline Layer Engineering and Opacity Control
A defining function of modern-day quartz crucibles, specifically those used in directional solidification of multicrystalline silicon, is the engineered inner layer framework.
During production, the inner surface is commonly treated to promote the formation of a thin, regulated layer of cristobalite– a high-temperature polymorph of SiO TWO– upon first heating.
This cristobalite layer serves as a diffusion obstacle, decreasing direct communication in between molten silicon and the underlying fused silica, thereby reducing oxygen and metallic contamination.
Additionally, the presence of this crystalline phase boosts opacity, enhancing infrared radiation absorption and advertising even more consistent temperature level distribution within the melt.
Crucible designers thoroughly stabilize the density and connection of this layer to stay clear of spalling or splitting as a result of volume changes throughout stage changes.
3. Functional Efficiency in High-Temperature Applications
3.1 Function in Silicon Crystal Development Processes
Quartz crucibles are essential in the production of monocrystalline and multicrystalline silicon, serving as the primary container for liquified silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ procedure, a seed crystal is dipped right into molten silicon held in a quartz crucible and gradually drew upwards while rotating, permitting single-crystal ingots to form.
Although the crucible does not straight get in touch with the expanding crystal, interactions in between liquified silicon and SiO ₂ walls lead to oxygen dissolution into the melt, which can influence service provider life time and mechanical strength in finished wafers.
In DS procedures for photovoltaic-grade silicon, massive quartz crucibles enable the controlled air conditioning of thousands of kilos of molten silicon right into block-shaped ingots.
Right here, layers such as silicon nitride (Si three N ₄) are related to the internal surface to stop adhesion and assist in very easy launch of the strengthened silicon block after cooling.
3.2 Destruction Devices and Life Span Limitations
In spite of their robustness, quartz crucibles deteriorate during repeated high-temperature cycles as a result of several interrelated devices.
Viscous circulation or deformation takes place at prolonged direct exposure above 1400 ° C, bring about wall thinning and loss of geometric stability.
Re-crystallization of integrated silica into cristobalite creates internal anxieties as a result of volume expansion, potentially creating cracks or spallation that contaminate the thaw.
Chemical disintegration arises from decrease responses between molten silicon and SiO ₂: SiO TWO + Si → 2SiO(g), producing unpredictable silicon monoxide that escapes and compromises the crucible wall surface.
Bubble development, driven by entraped gases or OH teams, further endangers architectural strength and thermal conductivity.
These degradation paths limit the variety of reuse cycles and require specific process control to make best use of crucible lifespan and item yield.
4. Arising Advancements and Technical Adaptations
4.1 Coatings and Compound Adjustments
To improve performance and durability, progressed quartz crucibles integrate useful coatings and composite frameworks.
Silicon-based anti-sticking layers and drugged silica coverings boost launch qualities and lower oxygen outgassing during melting.
Some manufacturers integrate zirconia (ZrO TWO) fragments into the crucible wall to raise mechanical toughness and resistance to devitrification.
Study is recurring right into completely clear or gradient-structured crucibles made to enhance induction heat transfer in next-generation solar furnace layouts.
4.2 Sustainability and Recycling Difficulties
With boosting demand from the semiconductor and photovoltaic markets, sustainable use of quartz crucibles has actually become a concern.
Spent crucibles contaminated with silicon residue are tough to reuse because of cross-contamination threats, bring about considerable waste generation.
Initiatives concentrate on creating multiple-use crucible liners, improved cleansing procedures, and closed-loop recycling systems to recoup high-purity silica for second applications.
As gadget effectiveness require ever-higher product purity, the function of quartz crucibles will remain to evolve with advancement in materials science and procedure engineering.
In summary, quartz crucibles represent an essential interface between resources and high-performance digital products.
Their distinct mix of pureness, thermal strength, and architectural layout makes it possible for the fabrication of silicon-based modern technologies that power modern computer and renewable energy systems.
