1. Material Fundamentals and Microstructural Features of Alumina Ceramics
1.1 Composition, Purity Grades, and Crystallographic Feature

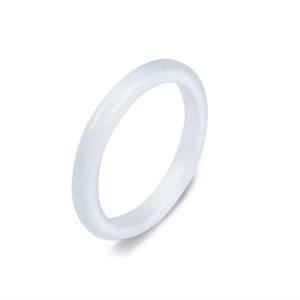

(Alumina Ceramic Wear Liners)
Alumina (Al Two O THREE), or aluminum oxide, is just one of the most extensively made use of technical porcelains in industrial design due to its exceptional equilibrium of mechanical stamina, chemical stability, and cost-effectiveness.
When crafted into wear linings, alumina porcelains are typically produced with pureness degrees ranging from 85% to 99.9%, with higher pureness representing enhanced solidity, put on resistance, and thermal performance.
The leading crystalline stage is alpha-alumina, which takes on a hexagonal close-packed (HCP) structure defined by solid ionic and covalent bonding, contributing to its high melting factor (~ 2072 Ā° C )and reduced thermal conductivity.
Microstructurally, alumina ceramics contain penalty, equiaxed grains whose size and circulation are controlled during sintering to optimize mechanical homes.
Grain sizes generally vary from submicron to a number of micrometers, with finer grains generally boosting fracture strength and resistance to break proliferation under abrasive packing.
Minor ingredients such as magnesium oxide (MgO) are frequently presented in trace amounts to hinder irregular grain development throughout high-temperature sintering, making sure consistent microstructure and dimensional stability.
The resulting material shows a Vickers solidity of 1500– 2000 HV, significantly exceeding that of solidified steel (generally 600– 800 HV), making it remarkably resistant to surface area deterioration in high-wear settings.
1.2 Mechanical and Thermal Performance in Industrial Conditions
Alumina ceramic wear linings are chosen largely for their superior resistance to unpleasant, erosive, and gliding wear systems widespread in bulk material dealing with systems.
They possess high compressive strength (up to 3000 MPa), good flexural strength (300– 500 MPa), and excellent tightness (Youthful’s modulus of ~ 380 GPa), allowing them to withstand intense mechanical loading without plastic contortion.
Although naturally weak contrasted to metals, their reduced coefficient of rubbing and high surface area solidity minimize particle attachment and lower wear prices by orders of magnitude relative to steel or polymer-based options.
Thermally, alumina keeps structural stability approximately 1600 Ā° C in oxidizing environments, permitting usage in high-temperature processing settings such as kiln feed systems, central heating boiler ducting, and pyroprocessing devices.

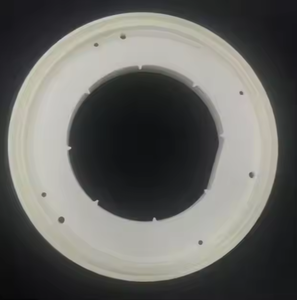

( Alumina Ceramic Wear Liners)
Its low thermal expansion coefficient (~ 8 Ć 10 ā»ā¶/ K) adds to dimensional stability throughout thermal cycling, lowering the risk of fracturing as a result of thermal shock when correctly installed.
Furthermore, alumina is electrically insulating and chemically inert to many acids, alkalis, and solvents, making it ideal for destructive atmospheres where metal linings would deteriorate quickly.
These combined residential or commercial properties make alumina ceramics suitable for protecting essential infrastructure in mining, power generation, concrete production, and chemical handling sectors.
2. Manufacturing Processes and Layout Integration Strategies
2.1 Shaping, Sintering, and Quality Assurance Protocols
The manufacturing of alumina ceramic wear liners includes a series of accuracy production steps created to attain high density, very little porosity, and constant mechanical efficiency.
Raw alumina powders are processed via milling, granulation, and creating strategies such as dry pressing, isostatic pressing, or extrusion, relying on the wanted geometry– ceramic tiles, plates, pipes, or custom-shaped segments.
Eco-friendly bodies are after that sintered at temperatures in between 1500 Ā° C and 1700 Ā° C in air, advertising densification via solid-state diffusion and attaining relative thickness going beyond 95%, frequently coming close to 99% of academic thickness.
Full densification is important, as recurring porosity functions as anxiety concentrators and speeds up wear and fracture under service problems.
Post-sintering operations may include diamond grinding or washing to attain limited dimensional resistances and smooth surface coatings that reduce friction and particle capturing.
Each set undertakes rigorous quality control, including X-ray diffraction (XRD) for stage analysis, scanning electron microscopy (SEM) for microstructural assessment, and solidity and bend testing to verify compliance with worldwide requirements such as ISO 6474 or ASTM B407.
2.2 Placing Methods and System Compatibility Considerations
Efficient combination of alumina wear liners right into industrial devices calls for cautious interest to mechanical accessory and thermal development compatibility.
Typical installation methods include glue bonding making use of high-strength ceramic epoxies, mechanical attaching with studs or anchors, and embedding within castable refractory matrices.
Adhesive bonding is extensively made use of for flat or delicately rounded surface areas, giving consistent stress distribution and vibration damping, while stud-mounted systems allow for very easy substitute and are chosen in high-impact zones.
To accommodate differential thermal growth between alumina and metallic substrates (e.g., carbon steel), engineered spaces, adaptable adhesives, or compliant underlayers are included to prevent delamination or breaking during thermal transients.
Designers should also think about side protection, as ceramic floor tiles are vulnerable to breaking at revealed edges; remedies consist of beveled sides, metal shrouds, or overlapping floor tile configurations.
Correct installation makes sure long service life and makes the most of the safety feature of the lining system.
3. Wear Devices and Efficiency Examination in Solution Environments
3.1 Resistance to Abrasive, Erosive, and Impact Loading
Alumina ceramic wear linings master atmospheres dominated by 3 primary wear devices: two-body abrasion, three-body abrasion, and fragment erosion.
In two-body abrasion, hard bits or surfaces straight gouge the lining surface, an usual event in chutes, receptacles, and conveyor shifts.
Three-body abrasion entails loosened particles trapped in between the liner and relocating product, causing rolling and damaging action that gradually eliminates product.
Erosive wear occurs when high-velocity fragments strike the surface, particularly in pneumatic communicating lines and cyclone separators.
Due to its high firmness and reduced crack strength, alumina is most reliable in low-impact, high-abrasion situations.
It carries out incredibly well against siliceous ores, coal, fly ash, and cement clinker, where wear rates can be minimized by 10– 50 times contrasted to mild steel liners.
Nonetheless, in applications involving duplicated high-energy influence, such as primary crusher chambers, crossbreed systems combining alumina ceramic tiles with elastomeric supports or metal guards are typically employed to soak up shock and prevent crack.
3.2 Area Screening, Life Process Analysis, and Failure Setting Assessment
Performance examination of alumina wear linings entails both laboratory screening and field surveillance.
Standard examinations such as the ASTM G65 completely dry sand rubber wheel abrasion test offer relative wear indices, while customized slurry disintegration gears simulate site-specific conditions.
In industrial setups, use rate is generally determined in mm/year or g/kWh, with life span forecasts based upon initial thickness and observed deterioration.
Failing modes include surface area sprucing up, micro-cracking, spalling at edges, and full tile dislodgement due to glue destruction or mechanical overload.
Origin evaluation typically exposes setup errors, improper grade choice, or unforeseen influence lots as key factors to premature failing.
Life process cost analysis constantly shows that regardless of greater first prices, alumina linings supply superior overall expense of ownership due to prolonged replacement intervals, reduced downtime, and lower maintenance labor.
4. Industrial Applications and Future Technological Advancements
4.1 Sector-Specific Implementations Across Heavy Industries
Alumina ceramic wear liners are deployed across a wide spectrum of industrial fields where product degradation poses functional and financial challenges.
In mining and mineral processing, they safeguard transfer chutes, mill linings, hydrocyclones, and slurry pumps from unpleasant slurries containing quartz, hematite, and other tough minerals.
In nuclear power plant, alumina floor tiles line coal pulverizer ducts, boiler ash hoppers, and electrostatic precipitator components subjected to fly ash disintegration.
Cement producers make use of alumina liners in raw mills, kiln inlet zones, and clinker conveyors to battle the very unpleasant nature of cementitious products.
The steel industry utilizes them in blast furnace feed systems and ladle shadows, where resistance to both abrasion and moderate thermal loads is crucial.
Also in less standard applications such as waste-to-energy plants and biomass handling systems, alumina ceramics give durable protection versus chemically hostile and fibrous products.
4.2 Emerging Trends: Composite Equipments, Smart Liners, and Sustainability
Present study focuses on boosting the strength and capability of alumina wear systems with composite style.
Alumina-zirconia (Al Two O FIVE-ZrO ā) composites leverage makeover strengthening from zirconia to boost split resistance, while alumina-titanium carbide (Al two O THREE-TiC) grades offer enhanced performance in high-temperature sliding wear.
Another advancement involves installing sensing units within or underneath ceramic linings to keep an eye on wear development, temperature, and influence frequency– enabling predictive maintenance and digital twin assimilation.
From a sustainability perspective, the extensive service life of alumina liners minimizes product intake and waste generation, lining up with round economy principles in industrial operations.
Recycling of invested ceramic liners right into refractory accumulations or building and construction products is additionally being discovered to minimize environmental impact.
To conclude, alumina ceramic wear linings represent a keystone of modern-day industrial wear security modern technology.
Their exceptional hardness, thermal stability, and chemical inertness, combined with mature manufacturing and setup techniques, make them crucial in combating product deterioration across hefty markets.
As material science advancements and electronic tracking becomes a lot more incorporated, the future generation of smart, resistant alumina-based systems will even more improve operational performance and sustainability in unpleasant settings.
