Every part in a train system must function well. This maintains the system safe and effective. Train spreading parts are very vital. They provide support, connect points, and conduct signals. Their top quality impacts just how steady the train network is. When you acquire these components for South Africa, South America, or Russia, you should locate good suppliers. To be effective, you need to know the regional technical policies. Below are 5 essential high quality criteria you must constantly follow.
1. Product Structure & Mechanical Characteristics: The Foundation of Top quality
The performance of cast iron relies on its particular chemical structure and casting procedure, and need to satisfy the worldwide or local standards of the target audience. A trusted train casting components manufacturer will certainly provide complete product traceability.
1.1 Composition Standards: Have to adhere to requirements such as International Criteria (ISO), European Specification (EN), Russian GOST criteria, or those frequently made use of in South America like IRAM (Argentina) and ABNT NBR (Brazil). The material of harmful elements like phosphorus and sulfur have to be purely controlled.
1.2 Mechanical Qualities: Concentrate on tensile stamina, yield strength, solidity, and elongation. For pliable iron, refer to standards such as ISO 1083, EN 1563, or GOST 28394. Procurement should call for suppliers to give material certificates and mechanical test records that adhere to the target market’s requirements.

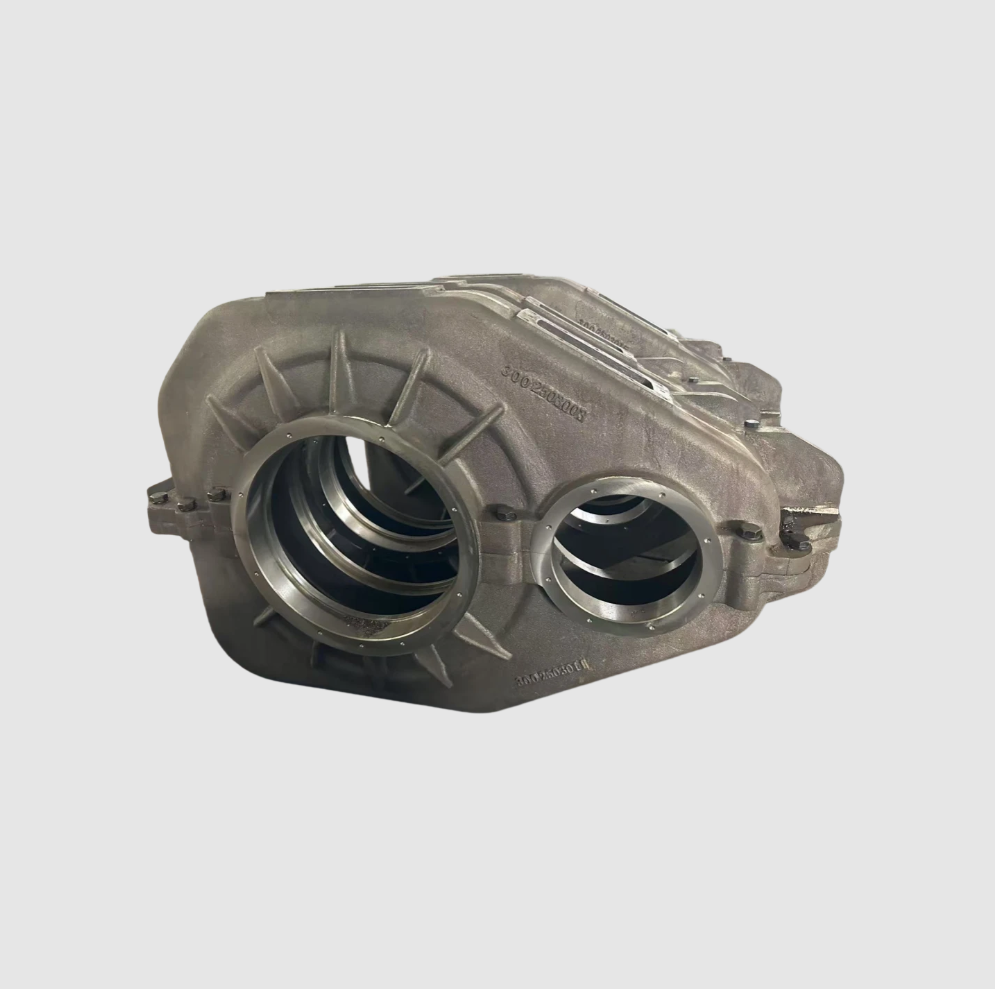

(Railway Cast Iron Gearbox)
2. Dimensional Precision & Tolerance Control: Making Sure a “Perfect Fit”
Railway tasks worldwide have rigorous demands for dimensional interchangeability; any type of discrepancy can impact system integration. Precision is a mark of remarkable train spreading makers.
2.1 Essential Dimensions: All user interface dimensions and mounting opening positions for all railway spreading parts have to be 100% examined.
2.2 Tolerance Standards: Ought to comply with worldwide acknowledged criteria like ISO 2768, or particular tolerance demands explicitly agreed upon with the customer. For the Russian and CIS markets, unique attention needs to be paid to abiding by appropriate resistance specs in GOST 30893.
3. Limitations on Casting Defects: Removing Inner Hidden Dangers
The acceptance criteria for casting defects must be plainly defined in contracts and based on worldwide or regionally acknowledged specs. Leading train casting components manufacturer procedures employ strenuous non-destructive testing.
3.1 Surface area Issues: Criteria like ISO 8062 can be referenced for assessing casting surface area high quality. Cracks, chilly shuts, and other flaws impacting serviceability are not permitted.
3.2 Interior Defects: For essential load-bearing railway casting parts, non-destructive screening (e.g., ultrasonic, radiographic) should be done according to criteria like ISO 4990, EN 12680, or the GOST R 55724 collection, with clear acceptance levels for flaws.
4. Metallographic Structure & Internal Quality
The tiny framework of the product is the key basis for judging whether its inner top quality fulfills the standard. This is a critical check for any type of expert railway spreading components maker.
4.1 Ductile Iron: The analysis of nodularization price should comply with criteria such as ISO 945-1 or GOST 3443 to ensure its mechanical homes satisfy the requirements for usage under intricate working problems.
4.2 Graphite Morphology & Matrix Structure: The metallographic assessment report is a vital paper for validating the security of the manufacturing process and must follow the appropriate global or local criteria.

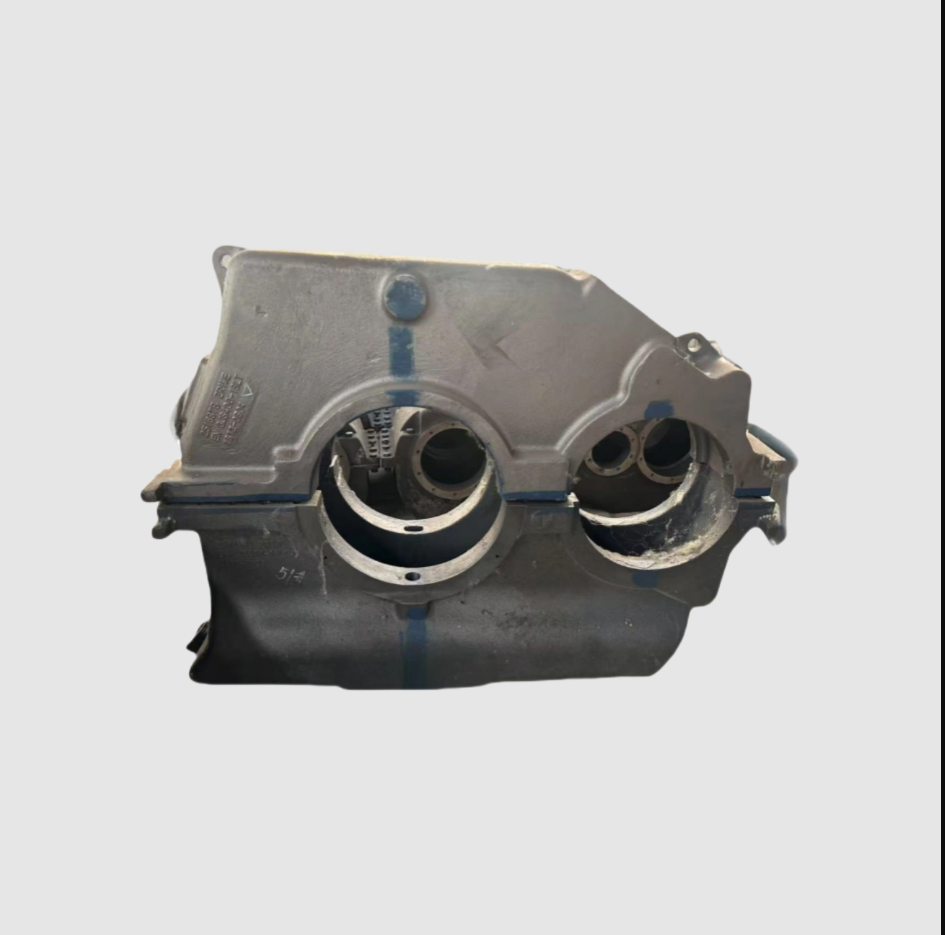

(Railway Cast Iron Gearbox)
5. Anti-Corrosion Treatment & Surface Quality: Withstanding Harsh Environments
Offered South Africa’s coastal high salinity, South America’s tropical rain forest humidity, and Russia’s severe cold and de-icing salts, anti-corrosion therapy for train casting components is vital.
5.1 Treatment Processes: Specify the kind of anti-corrosion process, such as hot-dip galvanizing (ISO 1461), epoxy finishing, etc, and specify essential indicators like layer thickness, adhesion ( e.g., ISO 2409), and salt spray resistance ( e.g., ISO 9227).
5.2 Regional Standards: Should pay attention to specific needs of the target audience, such as Russia’s GOST 9.307 anti-corrosion system accreditation, or South Africa’s SANS (South African National Criterion) standards. A global railway spreading producers will certainly know with these diverse needs.
Luoyang Fonyo Heavy Industries Co., Ltd. is a leading maker of hefty commercial spreadings and elements, focusing on providing top notch steel spreadings, consisting of carbon steel, high manganese steel, alloy steel, and heat-resistant steel spreadings. With a comprehensive service version integrating design, casting, machining, and solution, Fonyo guarantees that each product meets strenuous quality and efficiency requirements to satisfy the demanding demands of numerous hefty sectors.
If you are looking for a trusted supplier of , Luoyang Fonyo Heavy Industries Co., Ltd. is your ideal choice. Visit Fonyo’s official website (www.railwaypart.com) for more product information and technical support!
