Introduction to Light Weight Aluminum Nitride Ceramics
Aluminum nitride (AlN) is a high-performance ceramic product that has obtained widespread recognition for its outstanding thermal conductivity, electric insulation, and mechanical stability at elevated temperatures. With a hexagonal wurtzite crystal framework, AlN exhibits an unique mix of homes that make it the most perfect substrate product for applications in electronics, optoelectronics, power components, and high-temperature environments. Its ability to successfully dissipate heat while preserving superb dielectric toughness settings AlN as a remarkable choice to standard ceramic substratums such as alumina and beryllium oxide. This article checks out the essential qualities of light weight aluminum nitride ceramics, delves into manufacture methods, and highlights its crucial roles across innovative technical domains.

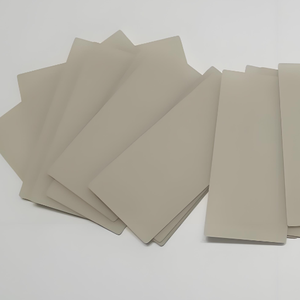

(Aluminum Nitride Ceramics)
Crystal Framework and Essential Properties
The performance of aluminum nitride as a substratum product is largely determined by its crystalline framework and intrinsic physical residential or commercial properties. AlN embraces a wurtzite-type lattice composed of alternating aluminum and nitrogen atoms, which contributes to its high thermal conductivity– usually going beyond 180 W/(m · K), with some high-purity samples achieving over 320 W/(m · K). This worth significantly exceeds those of various other commonly made use of ceramic products, consisting of alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
Along with its thermal efficiency, AlN has a large bandgap of around 6.2 eV, resulting in outstanding electrical insulation residential properties also at heats. It likewise demonstrates low thermal development (CTE ≈ 4.5 × 10 ⁻⁶/ K), which very closely matches that of silicon and gallium arsenide, making it an ideal suit for semiconductor device packaging. In addition, AlN displays high chemical inertness and resistance to thaw metals, boosting its viability for rough atmospheres. These consolidated characteristics develop AlN as a prominent candidate for high-power electronic substratums and thermally managed systems.
Fabrication and Sintering Technologies
Producing top quality aluminum nitride ceramics calls for specific powder synthesis and sintering techniques to achieve thick microstructures with marginal impurities. Due to its covalent bonding nature, AlN does not quickly densify through conventional pressureless sintering. For that reason, sintering aids such as yttrium oxide (Y TWO O FIVE), calcium oxide (CaO), or unusual earth aspects are typically contributed to advertise liquid-phase sintering and boost grain border diffusion.
The fabrication process generally begins with the carbothermal decrease of light weight aluminum oxide in a nitrogen ambience to synthesize AlN powders. These powders are after that grated, formed via approaches like tape spreading or shot molding, and sintered at temperatures in between 1700 ° C and 1900 ° C under a nitrogen-rich atmosphere. Warm pressing or trigger plasma sintering (SPS) can even more enhance density and thermal conductivity by minimizing porosity and advertising grain alignment. Advanced additive manufacturing strategies are also being discovered to produce complex-shaped AlN components with customized thermal monitoring capabilities.
Application in Digital Product Packaging and Power Modules
Among one of the most popular uses of aluminum nitride ceramics remains in digital product packaging, especially for high-power tools such as protected gate bipolar transistors (IGBTs), laser diodes, and superhigh frequency (RF) amplifiers. As power thickness increase in contemporary electronics, efficient warmth dissipation becomes vital to make sure integrity and long life. AlN substrates provide an optimal option by integrating high thermal conductivity with superb electrical seclusion, protecting against short circuits and thermal runaway conditions.
Additionally, AlN-based straight bound copper (DBC) and active metal brazed (AMB) substrates are increasingly employed in power module styles for electric cars, renewable energy inverters, and commercial motor drives. Contrasted to traditional alumina or silicon nitride substrates, AlN uses faster heat transfer and far better compatibility with silicon chip coefficients of thermal growth, thereby reducing mechanical stress and improving general system efficiency. Recurring research study aims to boost the bonding strength and metallization methods on AlN surfaces to more broaden its application extent.
Usage in Optoelectronic and High-Temperature Gadget
Past electronic packaging, light weight aluminum nitride ceramics play a vital role in optoelectronic and high-temperature applications as a result of their transparency to ultraviolet (UV) radiation and thermal security. AlN is widely used as a substrate for deep UV light-emitting diodes (LEDs) and laser diodes, especially in applications needing sanitation, picking up, and optical communication. Its large bandgap and reduced absorption coefficient in the UV range make it a suitable prospect for sustaining aluminum gallium nitride (AlGaN)-based heterostructures.
In addition, AlN’s capability to function reliably at temperatures surpassing 1000 ° C makes it appropriate for use in sensors, thermoelectric generators, and elements revealed to extreme thermal tons. In aerospace and protection sectors, AlN-based sensing unit packages are used in jet engine tracking systems and high-temperature control systems where standard products would certainly fail. Continual advancements in thin-film deposition and epitaxial growth methods are increasing the potential of AlN in next-generation optoelectronic and high-temperature integrated systems.
( Aluminum Nitride Ceramics)
Environmental Security and Long-Term Dependability
A key factor to consider for any type of substrate material is its lasting dependability under functional stress and anxieties. Light weight aluminum nitride shows premium ecological stability compared to many other porcelains. It is extremely resistant to rust from acids, antacid, and molten steels, guaranteeing toughness in aggressive chemical settings. However, AlN is prone to hydrolysis when subjected to wetness at elevated temperature levels, which can degrade its surface and reduce thermal performance.
To alleviate this issue, protective coverings such as silicon nitride (Si six N FOUR), aluminum oxide, or polymer-based encapsulation layers are typically put on boost dampness resistance. In addition, cautious sealing and product packaging strategies are applied during tool assembly to maintain the stability of AlN substratums throughout their life span. As environmental laws become much more strict, the safe nature of AlN also places it as a preferred alternative to beryllium oxide, which positions wellness risks during processing and disposal.
Verdict
Light weight aluminum nitride ceramics stand for a class of innovative products distinctively suited to deal with the growing needs for reliable thermal monitoring and electric insulation in high-performance electronic and optoelectronic systems. Their extraordinary thermal conductivity, chemical stability, and compatibility with semiconductor modern technologies make them one of the most perfect substrate material for a large range of applications– from automotive power modules to deep UV LEDs and high-temperature sensors. As manufacture innovations remain to progress and cost-effective production techniques mature, the adoption of AlN substrates is anticipated to climb considerably, driving innovation in next-generation electronic and photonic tools.
