Boron Carbide Ceramics: Revealing the Science, Properties, and Revolutionary Applications of an Ultra-Hard Advanced Product
1. Introduction to Boron Carbide: A Product at the Extremes
Boron carbide (B FOUR C) stands as one of the most exceptional synthetic products known to modern-day products science, distinguished by its position among the hardest substances on Earth, went beyond only by diamond and cubic boron nitride.
(Boron Carbide Ceramic)
First manufactured in the 19th century, boron carbide has actually evolved from a research laboratory interest into a critical part in high-performance design systems, protection technologies, and nuclear applications.
Its special combination of severe hardness, reduced thickness, high neutron absorption cross-section, and superb chemical stability makes it vital in settings where standard products fall short.
This write-up gives a thorough yet obtainable expedition of boron carbide porcelains, delving into its atomic structure, synthesis approaches, mechanical and physical buildings, and the large range of advanced applications that take advantage of its outstanding qualities.
The goal is to link the void between scientific understanding and practical application, supplying readers a deep, organized understanding right into just how this remarkable ceramic material is forming modern-day innovation.
2. Atomic Structure and Essential Chemistry
2.1 Crystal Lattice and Bonding Characteristics
Boron carbide takes shape in a rhombohedral structure (room group R3m) with a complex system cell that suits a variable stoichiometry, typically varying from B FOUR C to B ₁₀. FIVE C.
The fundamental building blocks of this framework are 12-atom icosahedra made up mainly of boron atoms, linked by three-atom direct chains that span the crystal lattice.
The icosahedra are highly secure clusters due to strong covalent bonding within the boron network, while the inter-icosahedral chains– usually consisting of C-B-C or B-B-B configurations– play an important role in establishing the product’s mechanical and electronic properties.
This one-of-a-kind architecture results in a material with a high level of covalent bonding (over 90%), which is straight in charge of its exceptional solidity and thermal security.
The existence of carbon in the chain websites improves structural stability, yet discrepancies from optimal stoichiometry can present problems that influence mechanical performance and sinterability.

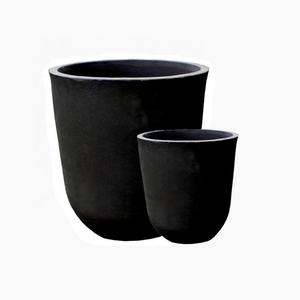

(Boron Carbide Ceramic)
2.2 Compositional Variability and Problem Chemistry
Unlike lots of porcelains with fixed stoichiometry, boron carbide shows a large homogeneity array, enabling significant variant in boron-to-carbon ratio without disrupting the overall crystal structure.
This adaptability enables customized buildings for details applications, though it likewise introduces obstacles in handling and performance uniformity.
Issues such as carbon shortage, boron jobs, and icosahedral distortions are common and can affect solidity, crack toughness, and electrical conductivity.
As an example, under-stoichiometric structures (boron-rich) tend to exhibit greater solidity yet lowered crack toughness, while carbon-rich versions may reveal enhanced sinterability at the expense of hardness.
Recognizing and regulating these issues is a vital emphasis in innovative boron carbide research, specifically for maximizing performance in armor and nuclear applications.
3. Synthesis and Handling Techniques
3.1 Primary Production Approaches
Boron carbide powder is mainly produced through high-temperature carbothermal decrease, a process in which boric acid (H FOUR BO ₃) or boron oxide (B TWO O ₃) is responded with carbon resources such as petroleum coke or charcoal in an electric arc furnace.
The reaction proceeds as complies with:
B TWO O FOUR + 7C → 2B FOUR C + 6CO (gas)
This process occurs at temperatures going beyond 2000 ° C, calling for considerable energy input.
The resulting crude B ₄ C is then grated and detoxified to get rid of residual carbon and unreacted oxides.
Alternative techniques include magnesiothermic reduction, laser-assisted synthesis, and plasma arc synthesis, which use better control over fragment size and pureness yet are generally limited to small or customized manufacturing.
3.2 Challenges in Densification and Sintering
One of the most substantial obstacles in boron carbide ceramic manufacturing is achieving complete densification as a result of its solid covalent bonding and low self-diffusion coefficient.
Standard pressureless sintering typically results in porosity levels above 10%, significantly endangering mechanical strength and ballistic performance.
To overcome this, progressed densification methods are used:
Hot Pressing (HP): Includes simultaneous application of heat (generally 2000– 2200 ° C )and uniaxial pressure (20– 50 MPa) in an inert environment, generating near-theoretical thickness.
Hot Isostatic Pressing (HIP): Uses heat and isotropic gas stress (100– 200 MPa), eliminating interior pores and boosting mechanical stability.
Trigger Plasma Sintering (SPS): Makes use of pulsed direct present to swiftly warm the powder compact, enabling densification at reduced temperatures and much shorter times, preserving fine grain structure.
Ingredients such as carbon, silicon, or change steel borides are frequently presented to promote grain boundary diffusion and enhance sinterability, though they must be meticulously controlled to stay clear of degrading hardness.
4. Mechanical and Physical Residence
4.1 Exceptional Hardness and Put On Resistance
Boron carbide is renowned for its Vickers firmness, normally varying from 30 to 35 GPa, placing it among the hardest well-known products.
This extreme hardness equates into outstanding resistance to unpleasant wear, making B FOUR C optimal for applications such as sandblasting nozzles, reducing devices, and wear plates in mining and boring devices.
The wear mechanism in boron carbide involves microfracture and grain pull-out as opposed to plastic deformation, a quality of fragile porcelains.
However, its low fracture strength (commonly 2.5– 3.5 MPa · m ¹ / TWO) makes it at risk to split proliferation under influence loading, demanding cautious design in dynamic applications.
4.2 Reduced Density and High Details Strength
With a thickness of approximately 2.52 g/cm ³, boron carbide is just one of the lightest architectural ceramics offered, providing a significant benefit in weight-sensitive applications.
This low density, combined with high compressive toughness (over 4 Grade point average), leads to an extraordinary particular toughness (strength-to-density proportion), critical for aerospace and protection systems where reducing mass is paramount.
As an example, in individual and lorry shield, B FOUR C provides premium protection each weight compared to steel or alumina, enabling lighter, much more mobile safety systems.
4.3 Thermal and Chemical Security
Boron carbide exhibits exceptional thermal security, preserving its mechanical homes approximately 1000 ° C in inert environments.
It has a high melting factor of around 2450 ° C and a low thermal development coefficient (~ 5.6 × 10 ⁻⁶/ K), contributing to great thermal shock resistance.
Chemically, it is highly resistant to acids (except oxidizing acids like HNO FIVE) and liquified metals, making it suitable for use in harsh chemical settings and nuclear reactors.
Nonetheless, oxidation comes to be considerable above 500 ° C in air, developing boric oxide and co2, which can deteriorate surface stability over time.
Protective finishes or environmental control are often required in high-temperature oxidizing conditions.
5. Secret Applications and Technological Effect
5.1 Ballistic Protection and Armor Solutions
Boron carbide is a foundation product in modern-day light-weight armor because of its unparalleled mix of hardness and reduced thickness.
It is commonly used in:
Ceramic plates for body shield (Level III and IV protection).
Automobile shield for armed forces and law enforcement applications.
Airplane and helicopter cockpit defense.
In composite shield systems, B FOUR C ceramic tiles are normally backed by fiber-reinforced polymers (e.g., Kevlar or UHMWPE) to take in recurring kinetic power after the ceramic layer cracks the projectile.
Regardless of its high hardness, B ₄ C can undertake “amorphization” under high-velocity impact, a sensation that restricts its performance versus extremely high-energy dangers, triggering continuous research study right into composite adjustments and hybrid porcelains.
5.2 Nuclear Design and Neutron Absorption
Among boron carbide’s most essential roles remains in atomic power plant control and security systems.
As a result of the high neutron absorption cross-section of the ¹⁰ B isotope (3837 barns for thermal neutrons), B FOUR C is utilized in:
Control rods for pressurized water activators (PWRs) and boiling water activators (BWRs).
Neutron securing components.
Emergency closure systems.
Its capacity to take in neutrons without substantial swelling or deterioration under irradiation makes it a recommended product in nuclear environments.
Nonetheless, helium gas generation from the ¹⁰ B(n, α)seven Li response can bring about inner pressure buildup and microcracking with time, demanding cautious style and surveillance in long-lasting applications.
5.3 Industrial and Wear-Resistant Components
Past protection and nuclear markets, boron carbide finds extensive usage in industrial applications needing extreme wear resistance:
Nozzles for rough waterjet cutting and sandblasting.
Linings for pumps and valves managing destructive slurries.
Reducing devices for non-ferrous materials.
Its chemical inertness and thermal stability permit it to perform dependably in aggressive chemical handling atmospheres where metal devices would certainly wear away quickly.
6. Future Prospects and Research Study Frontiers
The future of boron carbide ceramics hinges on conquering its inherent restrictions– especially low fracture strength and oxidation resistance– via progressed composite design and nanostructuring.
Existing study instructions include:
Growth of B FOUR C-SiC, B FOUR C-TiB ₂, and B ₄ C-CNT (carbon nanotube) compounds to boost sturdiness and thermal conductivity.
Surface alteration and covering modern technologies to boost oxidation resistance.
Additive manufacturing (3D printing) of complex B FOUR C elements making use of binder jetting and SPS techniques.
As products scientific research continues to progress, boron carbide is poised to play an also higher function in next-generation technologies, from hypersonic lorry parts to advanced nuclear combination activators.
To conclude, boron carbide porcelains represent a pinnacle of crafted product efficiency, combining severe solidity, low density, and distinct nuclear buildings in a single compound.
With continuous technology in synthesis, handling, and application, this amazing product continues to press the boundaries of what is feasible in high-performance engineering.
