1. Product Attributes and Structural Design
1.1 Make-up and Crystalline Phases of Alumina

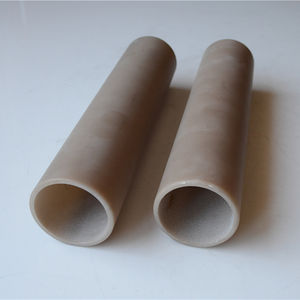

( Alumina Ceramic Tubes)
Alumina (Al â O SIX) ceramic tubes are primarily made from high-purity aluminum oxide, with purity degrees generally ranging from 90% to 99.8%, relying on the intended application.
The leading crystalline phase in completely thick, high-temperature sintered tubes is α-alumina (corundum), which displays a trigonal crystal framework and remarkable thermodynamic security.
This phase shift from precursor hydroxides (e.g., boehmite or gibbsite) to α-alumina takes place above 1100 ° C and results in a thick, interlocking microstructure that provides superior mechanical toughness and chemical resistance.
Greater purity grades (â„ 99.5%) maximize firmness, put on resistance, and dielectric efficiency, while lower-purity solutions might integrate second stages like mullite or glassy grain boundary phases to reduce expense or tailor thermal growth.
The ability to manage grain dimension, porosity, and stage structure throughout handling allows designers to tweak alumina tubes for certain useful demands throughout varied commercial domains.
1.2 Mechanical, Thermal, and Electric Characteristic
Alumina ceramic tubes display a special mix of physical buildings that make them important in demanding engineering settings.
With a Vickers firmness exceeding 1500 HV, they are extremely resistant to abrasion and erosion, outshining most steels and polymers in wear-prone systems.
Their compressive toughness can get to 2000 MPa, enabling structural use under high mechanical loads, while flexural toughness generally varies from 300 to 500 MPa, relying on density and surface coating.
Thermally, alumina keeps stability approximately 1700 ° C in oxidizing atmospheres, with a reduced coefficient of thermal expansion (~ 8 ppm/K), adding to excellent thermal shock resistance when correctly created.
Although its thermal conductivity (~ 30 W/(m · K)) is moderate contrasted to metals or aluminum nitride, it suffices for lots of high-temperature applications where electric insulation and architectural integrity are focused on.
Electrically, alumina is an impressive insulator with volume resistivity > 10 Âč⎠Ω · cm and high dielectric strength (> 15 kV/mm), making it excellent for electric feedthroughs, sensor housings, and high-voltage insulation.

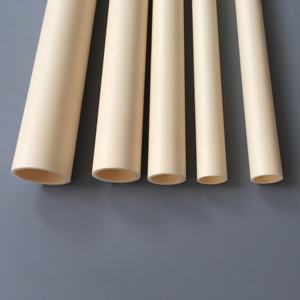

( Alumina Ceramic Tubes)
2. Production Processes and Dimensional Control
2.1 Shaping and Creating Strategies
The manufacturing of alumina ceramic tubes entails advanced forming approaches customized to accomplish specific measurements, wall thickness uniformity, and surface area high quality.
Usual methods consist of extrusion, isostatic pressing, and slide spreading, each fit to various dimension varieties and performance requirements.
Extrusion is commonly utilized for long, straight tubes with regular cross-sections, where a plasticized alumina paste is forced through a die and cut to length prior to drying and sintering.
For high-precision or thin-walled tubes, cool isostatic pressing (CIP) uses uniform pressure from all directions to small eco-friendly bodies, minimizing distortion and boosting thickness homogeneity.
Slide casting, involving the deposition of a colloidal alumina suspension (slip) onto a permeable plaster mold, is optimal for complex or large-diameter geometries with variable wall thickness.
After developing, tubes go through mindful drying to avoid breaking, complied with by binder burnout and high-temperature sintering (1500– 1650 ° C )to attain complete densification and dimensional security.
2.2 Completing and Quality Control
Post-sintering operations such as centerless grinding, splashing, and brightening are utilized to attain tight tolerances, smooth surface coatings, and accurate inner and external diameters.
Resistances as limited as ± 0.01 mm are achievable for vital applications in semiconductor processing or analytical instrumentation.
Surface area roughness can be lowered to Ra < 0.1 ”m, reducing particle capturing and improving compatibility with ultra-high vacuum (UHV) or cleanroom settings.
Non-destructive screening techniques– consisting of ultrasonic examination, X-ray radiography, and color penetrant testing– guarantee architectural honesty and absence of fractures or gaps.
Dimensional metrology utilizing coordinate gauging machines (CMM) or laser scanning confirms conformity with layout requirements, particularly for personalized or high-volume manufacturing runs.
3. Practical Performance in Harsh Environments
3.1 Resistance to Thermal and Chemical Deterioration
Among the most compelling advantages of alumina ceramic tubes is their capability to endure severe thermal and chemical problems where metals and polymers stop working.
They stay dimensionally secure and mechanically durable in continual service at temperatures above 1500 ° C, making them suitable for furnace linings, thermocouple defense sheaths, and radiant heating system tubes.
Their inertness to thaw metals (e.g., aluminum, zinc, and non-ferrous alloys), molten salts, and many acids (other than hydrofluoric and warm phosphoric acid) allows use in metallurgical and chemical processing equipment.
In oxidizing and minimizing environments, alumina does not deteriorate or militarize undesirable responses, protecting process pureness in semiconductor and glass manufacturing.
This chemical inertness also avoids contamination in high-purity liquid handling systems, consisting of those made use of in pharmaceutical and food processing industries.
3.2 Electrical Insulation and Plasma Resistance
In electric and plasma settings, alumina tubes work as shielding obstacles that preserve circuit stability under high voltage and raised temperature.
They are made use of in high-intensity discharge (HID) lights, where they contain ionized gases at temperatures going beyond 1000 ° C while holding up against electric possibilities of several kilovolts.
In plasma etching and deposition systems, alumina tubes serve as dielectric windows or gas circulation parts, withstanding ion bombardment and thermal biking without breaking or outgassing.
Their reduced dielectric loss and high arc resistance prevent electric tracking and break down, making sure long life span in switchgear and power transmission elements.
These properties are important in preserving procedure security and equipment integrity in innovative manufacturing and energy systems.
4. Industrial and Arising Applications
4.1 High-Temperature and Industrial Processing Solutions
Alumina ceramic tubes are integral to a wide range of industrial procedures that demand longevity under severe conditions.
In thermal processing, they function as protective sheaths for thermocouples and burner in kilns, heating systems, and warm therapy devices, securing sensitive parts from harsh atmospheres and mechanical wear.
In liquid handling, they transport hostile chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.
Their resistance to thermal shock permits quick heating and cooling cycles without failure, a crucial advantage in cyclic industrial operations.
In glass manufacturing, alumina tubes lead liquified glass flows and assistance creating devices, resisting erosion from thick, high-temperature melts.
4.2 Advanced Technologies and Future Combination
Past standard industrial usages, alumina tubes are locating new duties in cutting-edge innovations.
In semiconductor manufacture, ultra-pure alumina tubes are made use of in chemical vapor deposition (CVD) reactors and ion implantation systems, where bit generation and metal contamination should be reduced.
In medical tools, biocompatible alumina tubes act as shielding elements in surgical tools, oral implants, and analysis sensors.
Research study is checking out functionalized alumina tubes with embedded sensing units or conductive traces for clever structural surveillance in aerospace and power systems.
Additive manufacturing (3D printing) of alumina is emerging as a method to generate intricate tube geometries with internal networks or rated structures, making it possible for next-generation warm exchangers and microreactors.
As markets press toward greater effectiveness, cleaner procedures, and higher integrity, alumina ceramic tubes continue to advance as enabling components in the framework of modern-day technology.
In summary, alumina ceramic tubes stand for a mature yet dynamically advancing class of engineered products, integrating exceptional thermal, mechanical, and electric efficiency in a solitary inorganic channel.
Their convenience throughout extreme environments guarantees their ongoing significance in both established commercial systems and arising high-tech applications.
