1. Chemical and Structural Principles of Boron Carbide
1.1 Crystallography and Stoichiometric Irregularity

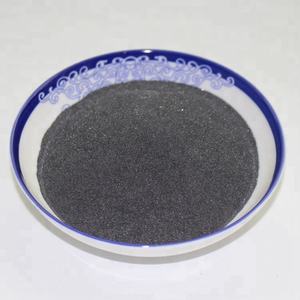

(Boron Carbide Podwer)
Boron carbide (B FOUR C) is a non-metallic ceramic substance renowned for its phenomenal firmness, thermal security, and neutron absorption capability, positioning it among the hardest recognized materials– exceeded just by cubic boron nitride and ruby.
Its crystal structure is based on a rhombohedral latticework made up of 12-atom icosahedra (mostly B ₁₂ or B ₁₁ C) interconnected by direct C-B-C or C-B-B chains, forming a three-dimensional covalent network that imparts remarkable mechanical strength.
Unlike several ceramics with repaired stoichiometry, boron carbide shows a wide variety of compositional adaptability, commonly varying from B FOUR C to B ₁₀. FOUR C, as a result of the replacement of carbon atoms within the icosahedra and architectural chains.
This irregularity affects key buildings such as hardness, electrical conductivity, and thermal neutron capture cross-section, enabling home adjusting based on synthesis problems and desired application.
The existence of innate flaws and disorder in the atomic setup also contributes to its special mechanical behavior, including a phenomenon referred to as “amorphization under anxiety” at high pressures, which can limit performance in severe effect scenarios.
1.2 Synthesis and Powder Morphology Control
Boron carbide powder is largely created via high-temperature carbothermal decrease of boron oxide (B TWO O TWO) with carbon sources such as oil coke or graphite in electrical arc furnaces at temperatures in between 1800 ° C and 2300 ° C.
The reaction proceeds as: B TWO O TWO + 7C → 2B FOUR C + 6CO, generating crude crystalline powder that requires subsequent milling and purification to achieve fine, submicron or nanoscale particles suitable for innovative applications.
Alternative techniques such as laser-assisted chemical vapor deposition (CVD), sol-gel processing, and mechanochemical synthesis offer paths to higher purity and regulated particle dimension circulation, though they are often restricted by scalability and price.
Powder attributes– including bit dimension, shape, pile state, and surface chemistry– are critical specifications that affect sinterability, packing density, and last component performance.
For example, nanoscale boron carbide powders display boosted sintering kinetics due to high surface power, allowing densification at lower temperature levels, but are prone to oxidation and need protective atmospheres during handling and handling.
Surface functionalization and finish with carbon or silicon-based layers are increasingly utilized to improve dispersibility and inhibit grain growth throughout debt consolidation.

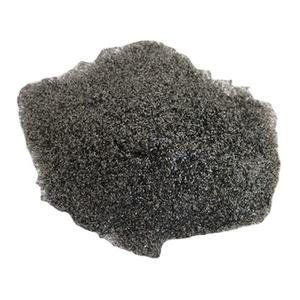

( Boron Carbide Podwer)
2. Mechanical Residences and Ballistic Efficiency Mechanisms
2.1 Hardness, Fracture Sturdiness, and Use Resistance
Boron carbide powder is the precursor to among the most efficient lightweight shield products readily available, owing to its Vickers firmness of roughly 30– 35 GPa, which allows it to deteriorate and blunt inbound projectiles such as bullets and shrapnel.
When sintered into thick ceramic floor tiles or integrated into composite armor systems, boron carbide outshines steel and alumina on a weight-for-weight basis, making it excellent for personnel security, vehicle armor, and aerospace protecting.
Nevertheless, despite its high solidity, boron carbide has fairly low crack strength (2.5– 3.5 MPa · m ¹ / TWO), making it prone to cracking under localized influence or duplicated loading.
This brittleness is intensified at high strain rates, where dynamic failing systems such as shear banding and stress-induced amorphization can bring about devastating loss of architectural honesty.
Ongoing research focuses on microstructural engineering– such as introducing secondary stages (e.g., silicon carbide or carbon nanotubes), developing functionally graded composites, or designing hierarchical designs– to mitigate these constraints.
2.2 Ballistic Power Dissipation and Multi-Hit Capacity
In personal and automotive shield systems, boron carbide floor tiles are usually backed by fiber-reinforced polymer compounds (e.g., Kevlar or UHMWPE) that absorb residual kinetic energy and contain fragmentation.
Upon effect, the ceramic layer cracks in a regulated way, dissipating energy via systems including fragment fragmentation, intergranular cracking, and stage makeover.
The fine grain structure originated from high-purity, nanoscale boron carbide powder improves these energy absorption procedures by boosting the thickness of grain borders that impede split propagation.
Recent innovations in powder processing have actually led to the growth of boron carbide-based ceramic-metal composites (cermets) and nano-laminated frameworks that improve multi-hit resistance– a vital need for army and law enforcement applications.
These crafted products maintain protective efficiency even after preliminary impact, addressing an essential restriction of monolithic ceramic shield.
3. Neutron Absorption and Nuclear Design Applications
3.1 Interaction with Thermal and Rapid Neutrons
Beyond mechanical applications, boron carbide powder plays a crucial function in nuclear modern technology because of the high neutron absorption cross-section of the ¹⁰ B isotope (3837 barns for thermal neutrons).
When incorporated into control poles, protecting products, or neutron detectors, boron carbide effectively regulates fission responses by capturing neutrons and going through the ¹⁰ B( n, α) ⁷ Li nuclear reaction, creating alpha fragments and lithium ions that are quickly contained.
This building makes it important in pressurized water activators (PWRs), boiling water reactors (BWRs), and research study activators, where exact neutron flux control is essential for risk-free procedure.
The powder is usually fabricated into pellets, coatings, or spread within metal or ceramic matrices to form composite absorbers with tailored thermal and mechanical residential or commercial properties.
3.2 Stability Under Irradiation and Long-Term Performance
A critical advantage of boron carbide in nuclear atmospheres is its high thermal stability and radiation resistance up to temperature levels exceeding 1000 ° C.
However, extended neutron irradiation can lead to helium gas accumulation from the (n, α) reaction, causing swelling, microcracking, and destruction of mechanical integrity– a sensation called “helium embrittlement.”
To reduce this, researchers are developing doped boron carbide formulations (e.g., with silicon or titanium) and composite designs that fit gas launch and maintain dimensional security over extended life span.
Additionally, isotopic enrichment of ¹⁰ B enhances neutron capture effectiveness while decreasing the complete product volume called for, boosting reactor style flexibility.
4. Emerging and Advanced Technological Integrations
4.1 Additive Production and Functionally Rated Parts
Current progression in ceramic additive manufacturing has actually enabled the 3D printing of intricate boron carbide elements using techniques such as binder jetting and stereolithography.
In these processes, fine boron carbide powder is selectively bound layer by layer, adhered to by debinding and high-temperature sintering to achieve near-full density.
This ability allows for the fabrication of customized neutron shielding geometries, impact-resistant latticework frameworks, and multi-material systems where boron carbide is incorporated with steels or polymers in functionally rated styles.
Such designs maximize efficiency by incorporating firmness, strength, and weight effectiveness in a single part, opening up brand-new frontiers in defense, aerospace, and nuclear engineering.
4.2 High-Temperature and Wear-Resistant Industrial Applications
Past defense and nuclear fields, boron carbide powder is made use of in abrasive waterjet cutting nozzles, sandblasting linings, and wear-resistant layers as a result of its extreme firmness and chemical inertness.
It surpasses tungsten carbide and alumina in abrasive settings, particularly when subjected to silica sand or other difficult particulates.
In metallurgy, it serves as a wear-resistant liner for receptacles, chutes, and pumps handling rough slurries.
Its reduced density (~ 2.52 g/cm THREE) more enhances its appeal in mobile and weight-sensitive commercial devices.
As powder top quality boosts and handling innovations breakthrough, boron carbide is poised to expand right into next-generation applications including thermoelectric products, semiconductor neutron detectors, and space-based radiation protecting.
Finally, boron carbide powder stands for a keystone product in extreme-environment engineering, combining ultra-high hardness, neutron absorption, and thermal strength in a solitary, flexible ceramic system.
Its duty in safeguarding lives, making it possible for atomic energy, and advancing industrial efficiency highlights its tactical relevance in contemporary innovation.
With proceeded technology in powder synthesis, microstructural layout, and making assimilation, boron carbide will stay at the leading edge of advanced products advancement for years ahead.
