1. Product Fundamentals and Morphological Advantages
1.1 Crystal Framework and Chemical Composition

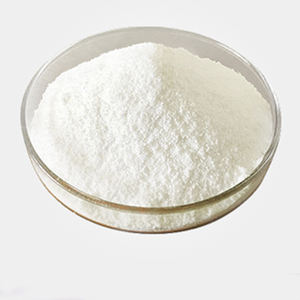

(Spherical alumina)
Spherical alumina, or round aluminum oxide (Al two O SIX), is a synthetically generated ceramic material characterized by a distinct globular morphology and a crystalline structure predominantly in the alpha (α) phase.
Alpha-alumina, one of the most thermodynamically steady polymorph, includes a hexagonal close-packed plan of oxygen ions with light weight aluminum ions occupying two-thirds of the octahedral interstices, leading to high latticework energy and phenomenal chemical inertness.
This stage shows impressive thermal stability, keeping stability up to 1800 ° C, and resists response with acids, alkalis, and molten steels under many commercial conditions.
Unlike irregular or angular alumina powders derived from bauxite calcination, spherical alumina is engineered through high-temperature procedures such as plasma spheroidization or flame synthesis to accomplish consistent roundness and smooth surface appearance.
The transformation from angular forerunner particles– commonly calcined bauxite or gibbsite– to thick, isotropic balls removes sharp sides and inner porosity, boosting packaging efficiency and mechanical toughness.
High-purity grades (≥ 99.5% Al Two O ₃) are necessary for digital and semiconductor applications where ionic contamination need to be reduced.
1.2 Particle Geometry and Packaging Behavior
The defining feature of round alumina is its near-perfect sphericity, commonly evaluated by a sphericity index > 0.9, which substantially influences its flowability and packaging density in composite systems.
Unlike angular fragments that interlock and create gaps, spherical particles roll past one another with very little friction, enabling high solids packing throughout formulation of thermal user interface materials (TIMs), encapsulants, and potting substances.
This geometric uniformity enables maximum academic packaging thickness going beyond 70 vol%, much going beyond the 50– 60 vol% common of irregular fillers.
Higher filler filling straight converts to boosted thermal conductivity in polymer matrices, as the continuous ceramic network provides effective phonon transportation paths.
Furthermore, the smooth surface area lowers wear on processing devices and reduces thickness surge during mixing, enhancing processability and dispersion security.
The isotropic nature of spheres additionally protects against orientation-dependent anisotropy in thermal and mechanical buildings, guaranteeing constant efficiency in all instructions.
2. Synthesis Methods and Quality Control
2.1 High-Temperature Spheroidization Methods
The production of round alumina primarily depends on thermal techniques that thaw angular alumina fragments and enable surface area tension to improve them right into spheres.
( Spherical alumina)
Plasma spheroidization is one of the most extensively made use of commercial technique, where alumina powder is infused right into a high-temperature plasma fire (up to 10,000 K), creating immediate melting and surface tension-driven densification into perfect balls.
The liquified beads strengthen swiftly during trip, forming thick, non-porous fragments with uniform dimension distribution when coupled with accurate classification.
Different techniques consist of fire spheroidization utilizing oxy-fuel lanterns and microwave-assisted heating, though these typically supply reduced throughput or much less control over particle size.
The starting material’s pureness and bit dimension circulation are vital; submicron or micron-scale precursors produce correspondingly sized balls after processing.
Post-synthesis, the item goes through extensive sieving, electrostatic splitting up, and laser diffraction analysis to ensure limited fragment dimension distribution (PSD), generally varying from 1 to 50 µm depending upon application.
2.2 Surface Adjustment and Practical Tailoring
To improve compatibility with organic matrices such as silicones, epoxies, and polyurethanes, spherical alumina is typically surface-treated with coupling representatives.
Silane coupling representatives– such as amino, epoxy, or vinyl useful silanes– form covalent bonds with hydroxyl groups on the alumina surface area while giving natural capability that interacts with the polymer matrix.
This therapy boosts interfacial bond, minimizes filler-matrix thermal resistance, and prevents jumble, causing even more homogeneous compounds with exceptional mechanical and thermal performance.
Surface coverings can also be engineered to pass on hydrophobicity, improve dispersion in nonpolar materials, or make it possible for stimuli-responsive behavior in clever thermal products.
Quality control includes measurements of wager surface, faucet thickness, thermal conductivity (normally 25– 35 W/(m · K )for dense α-alumina), and impurity profiling using ICP-MS to omit Fe, Na, and K at ppm levels.
Batch-to-batch uniformity is vital for high-reliability applications in electronic devices and aerospace.
3. Thermal and Mechanical Performance in Composites
3.1 Thermal Conductivity and User Interface Design
Round alumina is mostly used as a high-performance filler to enhance the thermal conductivity of polymer-based materials used in electronic packaging, LED lights, and power modules.
While pure epoxy or silicone has a thermal conductivity of ~ 0.2 W/(m · K), filling with 60– 70 vol% spherical alumina can enhance this to 2– 5 W/(m · K), enough for reliable heat dissipation in portable tools.
The high intrinsic thermal conductivity of α-alumina, combined with marginal phonon scattering at smooth particle-particle and particle-matrix interfaces, enables efficient heat transfer via percolation networks.
Interfacial thermal resistance (Kapitza resistance) remains a limiting variable, but surface functionalization and optimized dispersion strategies help decrease this barrier.
In thermal user interface materials (TIMs), round alumina minimizes get in touch with resistance between heat-generating elements (e.g., CPUs, IGBTs) and heat sinks, preventing getting too hot and prolonging device lifespan.
Its electric insulation (resistivity > 10 ¹² Ω · centimeters) guarantees safety and security in high-voltage applications, distinguishing it from conductive fillers like metal or graphite.
3.2 Mechanical Security and Integrity
Past thermal efficiency, spherical alumina enhances the mechanical effectiveness of composites by raising firmness, modulus, and dimensional security.
The round form distributes stress evenly, lowering crack initiation and breeding under thermal biking or mechanical lots.
This is particularly vital in underfill materials and encapsulants for flip-chip and 3D-packaged gadgets, where coefficient of thermal development (CTE) inequality can induce delamination.
By adjusting filler loading and bit size circulation (e.g., bimodal blends), the CTE of the compound can be tuned to match that of silicon or published circuit card, lessening thermo-mechanical stress.
Additionally, the chemical inertness of alumina stops destruction in moist or corrosive atmospheres, making certain long-term reliability in automobile, industrial, and outside electronic devices.
4. Applications and Technological Advancement
4.1 Electronics and Electric Car Solutions
Round alumina is a key enabler in the thermal administration of high-power electronic devices, consisting of insulated gate bipolar transistors (IGBTs), power materials, and battery monitoring systems in electrical cars (EVs).
In EV battery packs, it is included into potting compounds and phase modification materials to avoid thermal runaway by evenly dispersing warmth across cells.
LED makers utilize it in encapsulants and secondary optics to preserve lumen outcome and shade consistency by lowering joint temperature.
In 5G facilities and information centers, where warm flux thickness are climbing, spherical alumina-filled TIMs make sure steady procedure of high-frequency chips and laser diodes.
Its function is increasing into advanced packaging innovations such as fan-out wafer-level packaging (FOWLP) and embedded die systems.
4.2 Arising Frontiers and Sustainable Innovation
Future growths concentrate on hybrid filler systems incorporating spherical alumina with boron nitride, light weight aluminum nitride, or graphene to attain synergistic thermal performance while keeping electrical insulation.
Nano-spherical alumina (sub-100 nm) is being checked out for transparent porcelains, UV coatings, and biomedical applications, though obstacles in dispersion and price continue to be.
Additive manufacturing of thermally conductive polymer compounds using spherical alumina makes it possible for facility, topology-optimized warm dissipation structures.
Sustainability initiatives include energy-efficient spheroidization procedures, recycling of off-spec material, and life-cycle evaluation to reduce the carbon footprint of high-performance thermal materials.
In recap, round alumina represents an important crafted material at the crossway of ceramics, compounds, and thermal scientific research.
Its special mix of morphology, purity, and efficiency makes it indispensable in the recurring miniaturization and power augmentation of contemporary electronic and power systems.
