Intro: Trick devices in power electronics
Silicon-controlled rectifiers (SCRs), likewise referred to as thyristors, are semiconductor power tools with a four-layer triple joint structure (PNPN). Considering that its intro in the 1950s, SCRs have been widely used in commercial automation, power systems, home appliance control and other areas due to their high stand up to voltage, huge current lugging capability, rapid response and easy control. With the advancement of modern technology, SCRs have actually progressed right into lots of kinds, including unidirectional SCRs, bidirectional SCRs (TRIACs), turn-off thyristors (GTOs) and light-controlled thyristors (LTTs). The differences between these kinds are not only shown in the structure and functioning concept, however also determine their applicability in different application situations. This write-up will begin with a technical point of view, integrated with details criteria, to deeply assess the primary differences and normal uses these 4 SCRs.
Unidirectional SCR: Fundamental and steady application core
Unidirectional SCR is the most fundamental and common kind of thyristor. Its structure is a four-layer three-junction PNPN plan, consisting of 3 electrodes: anode (A), cathode (K) and gate (G). It only permits present to move in one direction (from anode to cathode) and turns on after eviction is triggered. When turned on, even if the gate signal is gotten rid of, as long as the anode current is higher than the holding present (typically much less than 100mA), the SCR continues to be on.

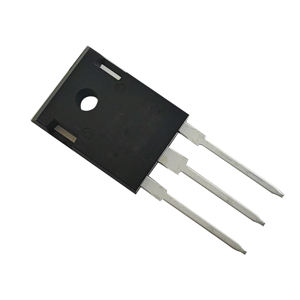

(Thyristor Rectifier)
Unidirectional SCR has strong voltage and existing tolerance, with an ahead repetitive top voltage (V DRM) of up to 6500V and a ranked on-state average existing (ITAV) of up to 5000A. As a result, it is commonly used in DC motor control, industrial heater, uninterruptible power supply (UPS) rectification components, power conditioning gadgets and various other events that need continuous conduction and high power processing. Its benefits are easy framework, inexpensive and high dependability, and it is a core component of several traditional power control systems.
Bidirectional SCR (TRIAC): Perfect for air conditioning control
Unlike unidirectional SCR, bidirectional SCR, additionally referred to as TRIAC, can attain bidirectional conduction in both positive and adverse half cycles. This framework consists of two anti-parallel SCRs, which allow TRIAC to be activated and switched on any time in the air conditioning cycle without altering the circuit connection approach. The symmetrical transmission voltage variety of TRIAC is generally ± 400 ~ 800V, the maximum lots current is about 100A, and the trigger current is much less than 50mA.
As a result of the bidirectional transmission characteristics of TRIAC, it is specifically appropriate for AC dimming and speed control in family appliances and consumer electronics. For example, devices such as lamp dimmers, follower controllers, and ac system follower speed regulators all count on TRIAC to achieve smooth power guideline. On top of that, TRIAC likewise has a lower driving power requirement and is suitable for integrated style, so it has actually been commonly utilized in wise home systems and small devices. Although the power density and changing speed of TRIAC are not comparable to those of brand-new power gadgets, its low cost and hassle-free usage make it a vital gamer in the area of little and average power a/c control.
Entrance Turn-Off Thyristor (GTO): A high-performance representative of active control
Gateway Turn-Off Thyristor (GTO) is a high-performance power tool established on the basis of traditional SCR. Unlike regular SCR, which can just be switched off passively, GTO can be turned off actively by using an adverse pulse current to eviction, thus attaining more adaptable control. This attribute makes GTO execute well in systems that need regular start-stop or quick response.

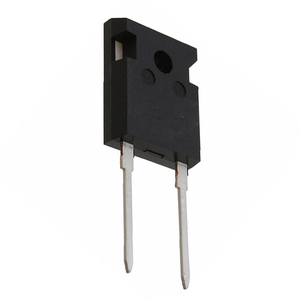

(Thyristor Rectifier)
The technical specifications of GTO show that it has exceptionally high power dealing with ability: the turn-off gain has to do with 4 ~ 5, the optimum operating voltage can reach 6000V, and the maximum operating current depends on 6000A. The turn-on time is about 1μs, and the turn-off time is 2 ~ 5μs. These efficiency indicators make GTO commonly used in high-power circumstances such as electric locomotive grip systems, huge inverters, industrial electric motor frequency conversion control, and high-voltage DC transmission systems. Although the drive circuit of GTO is relatively complex and has high changing losses, its performance under high power and high dynamic action requirements is still irreplaceable.
Light-controlled thyristor (LTT): A trustworthy choice in the high-voltage seclusion setting
Light-controlled thyristor (LTT) makes use of optical signals as opposed to electric signals to set off transmission, which is its biggest feature that differentiates it from various other types of SCRs. The optical trigger wavelength of LTT is typically between 850nm and 950nm, the action time is measured in nanoseconds, and the insulation level can be as high as 100kV or over. This optoelectronic seclusion device considerably enhances the system’s anti-electromagnetic disturbance capacity and safety and security.
LTT is generally made use of in ultra-high voltage direct existing transmission (UHVDC), power system relay protection devices, electro-magnetic compatibility security in clinical tools, and military radar communication systems and so on, which have incredibly high demands for security and security. For instance, lots of converter terminals in China’s “West-to-East Power Transmission” job have actually adopted LTT-based converter valve components to make certain steady procedure under exceptionally high voltage conditions. Some advanced LTTs can also be integrated with entrance control to accomplish bidirectional conduction or turn-off functions, better expanding their application range and making them an ideal choice for addressing high-voltage and high-current control issues.
