1. Material Science and Structural Feature
1.1 Crystal Framework and Chemical Security

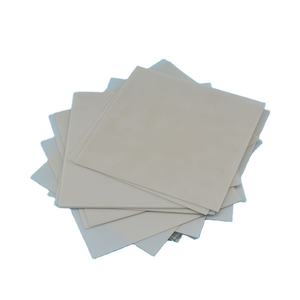

(Aluminum Nitride Ceramic Substrates)
Light weight aluminum nitride (AlN) is a broad bandgap semiconductor ceramic with a hexagonal wurtzite crystal framework, composed of alternating layers of aluminum and nitrogen atoms bound through strong covalent communications.
This durable atomic plan endows AlN with outstanding thermal stability, preserving structural honesty up to 2200 Ā° C in inert atmospheres and resisting decay under extreme thermal cycling.
Unlike alumina (Al ā O ā), AlN is chemically inert to molten steels and numerous reactive gases, making it appropriate for harsh environments such as semiconductor processing chambers and high-temperature heaters.
Its high resistance to oxidation– forming only a thin safety Al ā O three layer at surface area upon exposure to air– makes sure long-lasting integrity without substantial degradation of bulk properties.
Additionally, AlN shows outstanding electrical insulation with a resistivity surpassing 10 Ā¹ā“ Ī© Ā· centimeters and a dielectric strength above 30 kV/mm, important for high-voltage applications.
1.2 Thermal Conductivity and Electronic Attributes
One of the most specifying feature of light weight aluminum nitride is its impressive thermal conductivity, commonly varying from 140 to 180 W/(m Ā· K )for commercial-grade substrates– over five times higher than that of alumina (ā 30 W/(m Ā· K)).
This performance stems from the low atomic mass of nitrogen and aluminum, combined with strong bonding and minimal factor problems, which enable reliable phonon transport through the latticework.
Nevertheless, oxygen pollutants are specifically destructive; also trace quantities (above 100 ppm) alternative to nitrogen websites, developing light weight aluminum jobs and spreading phonons, consequently considerably reducing thermal conductivity.
High-purity AlN powders manufactured using carbothermal reduction or direct nitridation are necessary to attain ideal warm dissipation.
In spite of being an electric insulator, AlN’s piezoelectric and pyroelectric buildings make it valuable in sensing units and acoustic wave tools, while its wide bandgap (~ 6.2 eV) supports procedure in high-power and high-frequency electronic systems.
2. Manufacture Procedures and Production Obstacles
( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Techniques
Producing high-performance AlN substratums starts with the synthesis of ultra-fine, high-purity powder, commonly accomplished with responses such as Al ā O TWO + 3C + N TWO ā 2AlN + 3CO (carbothermal decrease) or direct nitridation of light weight aluminum steel: 2Al + N TWO ā 2AlN.
The resulting powder has to be carefully milled and doped with sintering help like Y TWO O THREE, CaO, or unusual earth oxides to promote densification at temperatures in between 1700 Ā° C and 1900 Ā° C under nitrogen environment.
These ingredients form short-term fluid stages that enhance grain boundary diffusion, allowing full densification (> 99% academic density) while decreasing oxygen contamination.
Post-sintering annealing in carbon-rich atmospheres can even more lower oxygen content by removing intergranular oxides, thereby restoring peak thermal conductivity.
Achieving consistent microstructure with controlled grain dimension is important to stabilize mechanical toughness, thermal performance, and manufacturability.
2.2 Substratum Forming and Metallization
When sintered, AlN porcelains are precision-ground and washed to fulfill tight dimensional resistances required for digital product packaging, usually to micrometer-level monotony.
Through-hole drilling, laser cutting, and surface area patterning enable assimilation into multilayer bundles and crossbreed circuits.
A crucial action in substratum manufacture is metallization– the application of conductive layers (generally tungsten, molybdenum, or copper) using procedures such as thick-film printing, thin-film sputtering, or direct bonding of copper (DBC).
For DBC, copper aluminum foils are bonded to AlN surfaces at raised temperature levels in a regulated environment, developing a solid user interface ideal for high-current applications.
Alternative techniques like energetic steel brazing (AMB) make use of titanium-containing solders to improve bond and thermal tiredness resistance, specifically under repeated power biking.
Correct interfacial design ensures reduced thermal resistance and high mechanical dependability in operating gadgets.
3. Efficiency Advantages in Electronic Systems
3.1 Thermal Monitoring in Power Electronics
AlN substratums excel in managing warm generated by high-power semiconductor devices such as IGBTs, MOSFETs, and RF amplifiers utilized in electric lorries, renewable resource inverters, and telecommunications facilities.
Reliable warmth extraction prevents localized hotspots, decreases thermal anxiety, and expands tool life time by mitigating electromigration and delamination dangers.
Contrasted to traditional Al two O three substratums, AlN makes it possible for smaller package sizes and greater power thickness due to its remarkable thermal conductivity, enabling designers to press performance limits without jeopardizing reliability.
In LED illumination and laser diodes, where junction temperature level directly influences effectiveness and shade stability, AlN substratums considerably improve luminescent output and functional life-span.
Its coefficient of thermal expansion (CTE ā 4.5 ppm/K) also carefully matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), decreasing thermo-mechanical stress throughout thermal cycling.
3.2 Electrical and Mechanical Reliability
Beyond thermal efficiency, AlN offers low dielectric loss (tan Ī“ < 0.0005) and secure permittivity (Īµįµ£ ā 8.9) throughout a wide frequency array, making it ideal for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature avoids wetness access, getting rid of deterioration dangers in moist atmospheres– a crucial benefit over natural substratums.
Mechanically, AlN possesses high flexural strength (300– 400 MPa) and firmness (HV ā 1200), ensuring durability throughout handling, assembly, and field procedure.
These features collectively contribute to improved system integrity, reduced failing rates, and reduced total expense of possession in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Protection Solutions
AlN ceramic substratums are currently typical in sophisticated power modules for commercial electric motor drives, wind and solar inverters, and onboard chargers in electrical and hybrid cars.
In aerospace and protection, they sustain radar systems, digital war devices, and satellite communications, where efficiency under severe problems is non-negotiable.
Medical imaging equipment, including X-ray generators and MRI systems, likewise benefit from AlN’s radiation resistance and signal stability.
As electrification fads accelerate throughout transportation and power industries, demand for AlN substrates remains to grow, driven by the requirement for compact, effective, and reputable power electronic devices.
4.2 Emerging Assimilation and Lasting Advancement
Future innovations concentrate on incorporating AlN right into three-dimensional packaging designs, ingrained passive components, and heterogeneous assimilation systems incorporating Si, SiC, and GaN devices.
Study right into nanostructured AlN movies and single-crystal substrates intends to additional increase thermal conductivity towards academic limitations (> 300 W/(m Ā· K)) for next-generation quantum and optoelectronic devices.
Initiatives to minimize production expenses through scalable powder synthesis, additive manufacturing of complex ceramic frameworks, and recycling of scrap AlN are gaining momentum to boost sustainability.
In addition, modeling tools utilizing limited element analysis (FEA) and artificial intelligence are being utilized to maximize substrate layout for particular thermal and electrical loads.
To conclude, light weight aluminum nitride ceramic substratums represent a foundation technology in modern electronics, distinctively linking the void between electric insulation and remarkable thermal transmission.
Their role in making it possible for high-efficiency, high-reliability power systems emphasizes their strategic value in the recurring advancement of digital and energy modern technologies.
